ESD FLOOR

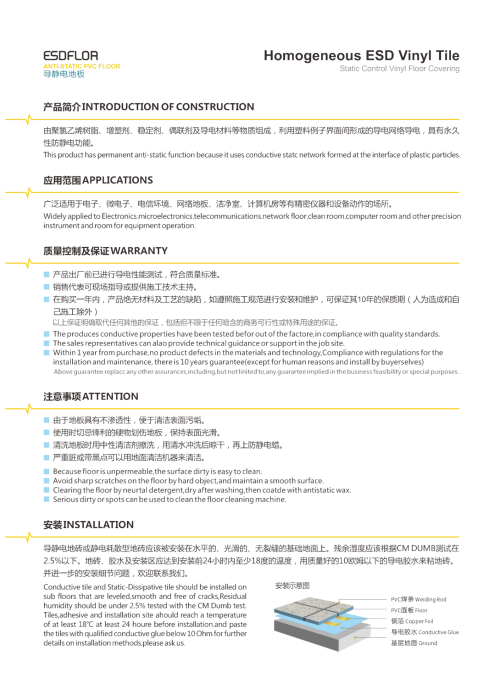

Description:

The product has permanent anti-static function because it uses conductive static network formed at the interface of plastic particles.

Product Detail:

1. Thickness: 2.0/3.0 mm Roll: 2m×20m/15m

2. Raw materials 100% virgin

3. 100% phthalate free

4. The wear layer is the same as the total thickness because of its con-structure.



Performance:

 1.  Anti-static

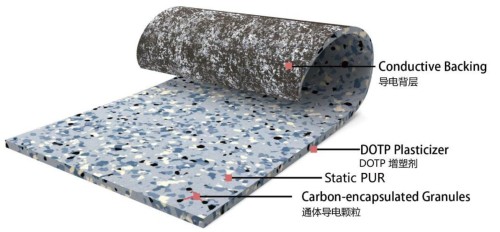

Permanent anti-static structure with conductive granules throughout the entire floor. Conductive particles are uniformly distributed on the based layer, ensure stable index and does not decay.



2. Effective and reliable

The base conductive back layer is a full-body embedded structure, physical anti-static principle to ensure permanent reliability. The technique of the bottom ink coating, paint coating , and chemical conductive are rejected.



3. Static PUR surface treatment
The floor surface is treated with STATIC PUR, it maintains the original anti-static performance, and make the floor surface more resistant to dirt.



4. Safe & healthy
Adhering to concepts of health, safety and environmental protection. All products uses environmental protection. All products uses environmentally friendly plasticizes DOTP, It strictly implements European and American international standards to ensure indoor human health and safety. Reject toxic raw materials like DOP, DINP etc..



5. The product construction is simple and fast, and can be installed and maintained without affecting the normal production of enterprises. The damaged area can be rebuilt. It can be used as soon as construction is completed.




Application :
Widely applied to electronic, microelectronics, telecommunications, network floor, clean room, computer room, and other precision instrument and room for equipment operation.

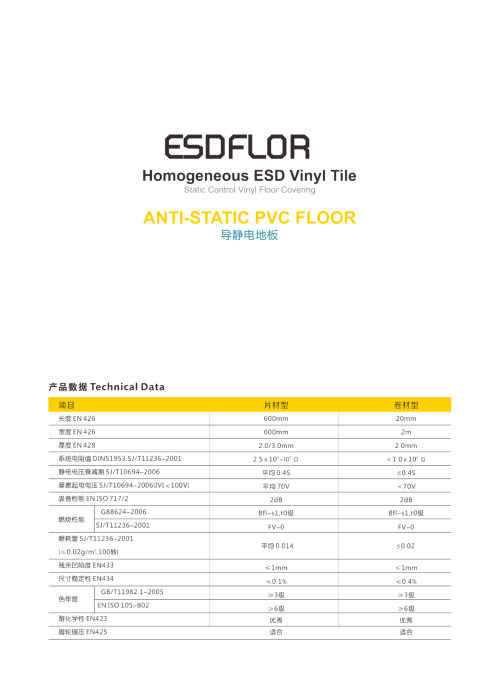

SPECIFICATIONS:

ITEM

STANDARD

ESD FLOOR TILE

ESD FLOOR SHEET

THICKNESS

EN428

2.0mm/3.0mm

2.0mm/3.0mm

SIZE

EN426

600mm×600mm

2m×20m

WEIGHT/m2

EN430

3.8kgs/5.8kgs

3.8kgs/5.8kgs

ELECTRIC PROPERTIES

DIN51953

2.5×104-109Ω

106-109Ω

DECAY TIME

SJ/T10694-2006(IVI<100V)

EQUAL 0.4s

EQUAL 0.4s

FIRE RESISTANCE GRADE

DIN4102

B1

B1

COMBUSTION PROPERTIES

SJ/T11236-2001(<10s,FV-0)

EQUAL 0.35s IFV-0

EQUAL 0.35s IFV-0

ANTIWEAR PROPERTIES

EN660pt2

EQUAL 0.014

EQUAL 0.014

WHEEL PRESSURE

EN425

NO INFLUENCE

NO INFLUENCE

RESIDUAL CONCAVITY

EN433

0.03mm/0.04mm

0.03mm/0.04mm

DIMENSIONAL STABILITY

EN434

≤0.10%

≤0.10%

COLOR FASTNESS

IDO105BO2

≥6

≥6

IMPACT SOUND ABSORBTION

ISO717

≈ 2dB

≈ 2dB
